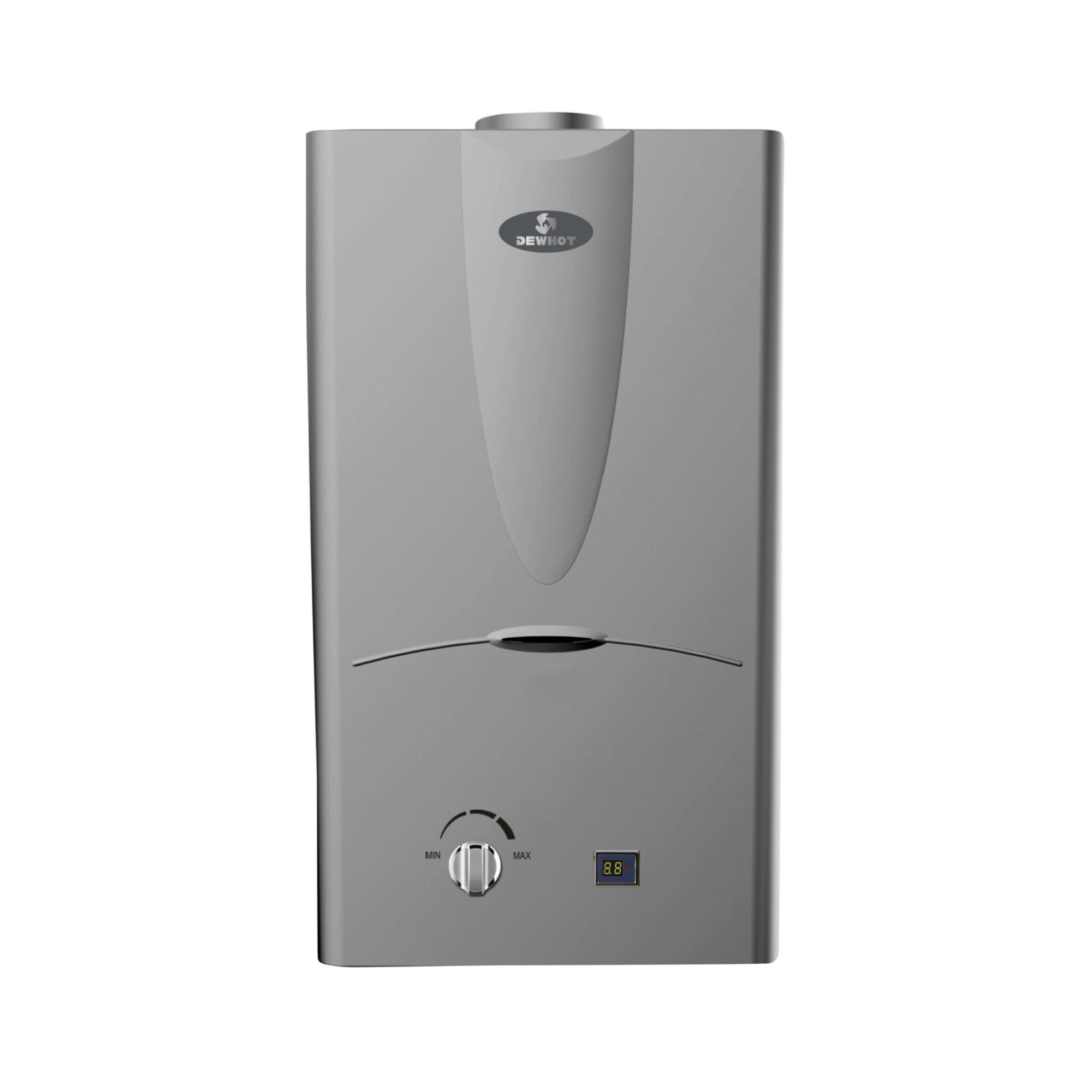

Dew Hot 16L Low Pressure Eco Flow Gas Geyser (Type D)

Description

84% energy efficiency
Geyser can function on low and high water pressure
Ventilation is required
Compatible with mixer taps
Flame failure safety device
LCD temperature display
Requires no electricity – flame ignition and geyser function are battery operated
Pressure Relief Protection (to function effectively, the valve must be set to your water pressure)

Technical Specifications
Max gas pressure – 2.8kPa
Max gas consumption – 2.65 kg / hour
Rated Input – 32Kw
Water pressure – 20-500 kPa
Min water output – 3L /min
Max water output – 16L / min
Unit weight – 13.2 Kg
Packaged weight – 15.5 Kg
Unit size – 745 x 425 x 230 mm
Packaged size
865 x 485 x 270 mm
Gas Type – LPG

TYPE B
Install outdoors only
The Gas Geyser must be installed with a weather box (cover)

If a Gas Geyser is installed outside must be installed with weather box to protect the appliance against extreme weather and damage. The warranty on the appliance will be void if it is not installed with weather box when installed outdoors.

These boxes are designed to allow the hot air that is released by the unit to escape so that they do not over heat and cut out.

In extreme weather areas we recommend using a flue. If your geyser uses a flue then you will need a cover that has a flue roof.
