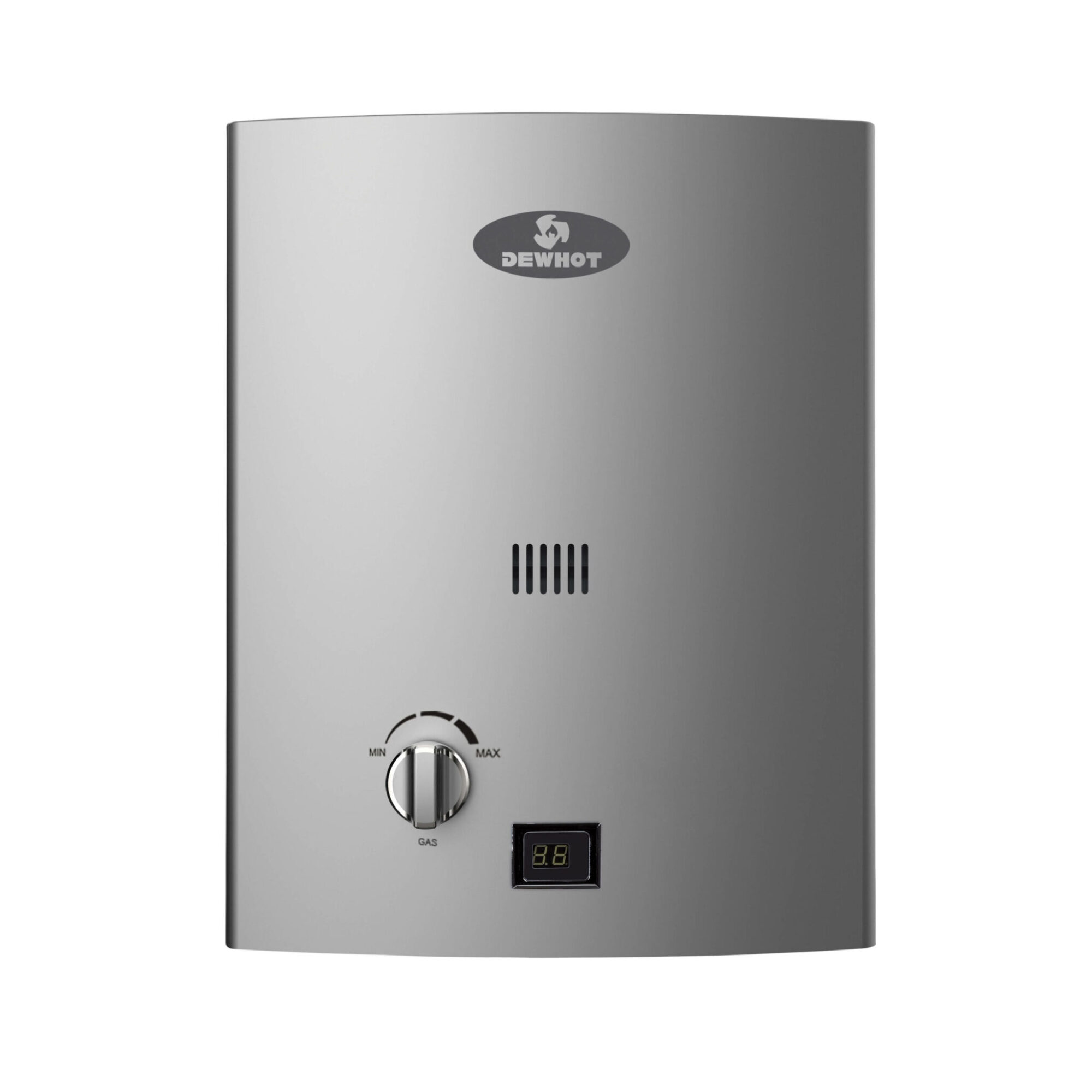

Dew Hot 5L Low Pressure Eco-Flow Gas Geyser

Description

Can be installed indoors without a flue
84% energy efficiency
Ventilation is required
Oxygen depletion sensor (Flame failure safety device)
Starts up with very low water pressure (1 liter per minute)
Compatible with mixer taps
Anti-freeze function
Requires no electricity – flame ignition and geyser function are battery operated

Technical Geyser Specifications
Max gas pressure – 2.8kPa
Max gas consumption – 0.8 kg / hour
Rated Input – 10 Kw
Water pressure – 15-500 kPa
Max water output (min/ max) – 1lt – 5lt / min
Unit weight – 4.7 Kg
Packaged weight – 5.2 Kg
Unit size – 410 x 290 x 165 mm
Packaged size – 570 x 345 x 205mm
Gas Type – LPG

TYPE A
Install as indoor gas geyser with flue
Install as outdoor gas geyser with cover and flue (All outdoor installations need a cover/weatherbox)

If a Gas Geyser is installed outside must be installed with weather box to protect the appliance against extreme weather and damage. The warranty on the appliance will be void if it is not installed with weather box when installed outdoors.

These boxes are designed to allow the hot air that is released by the unit to escape so that they do not over heat and cut out.

In extreme weather areas we recommend using a flue. If your geyser uses a flue then you will need a cover that has a flue roof.
