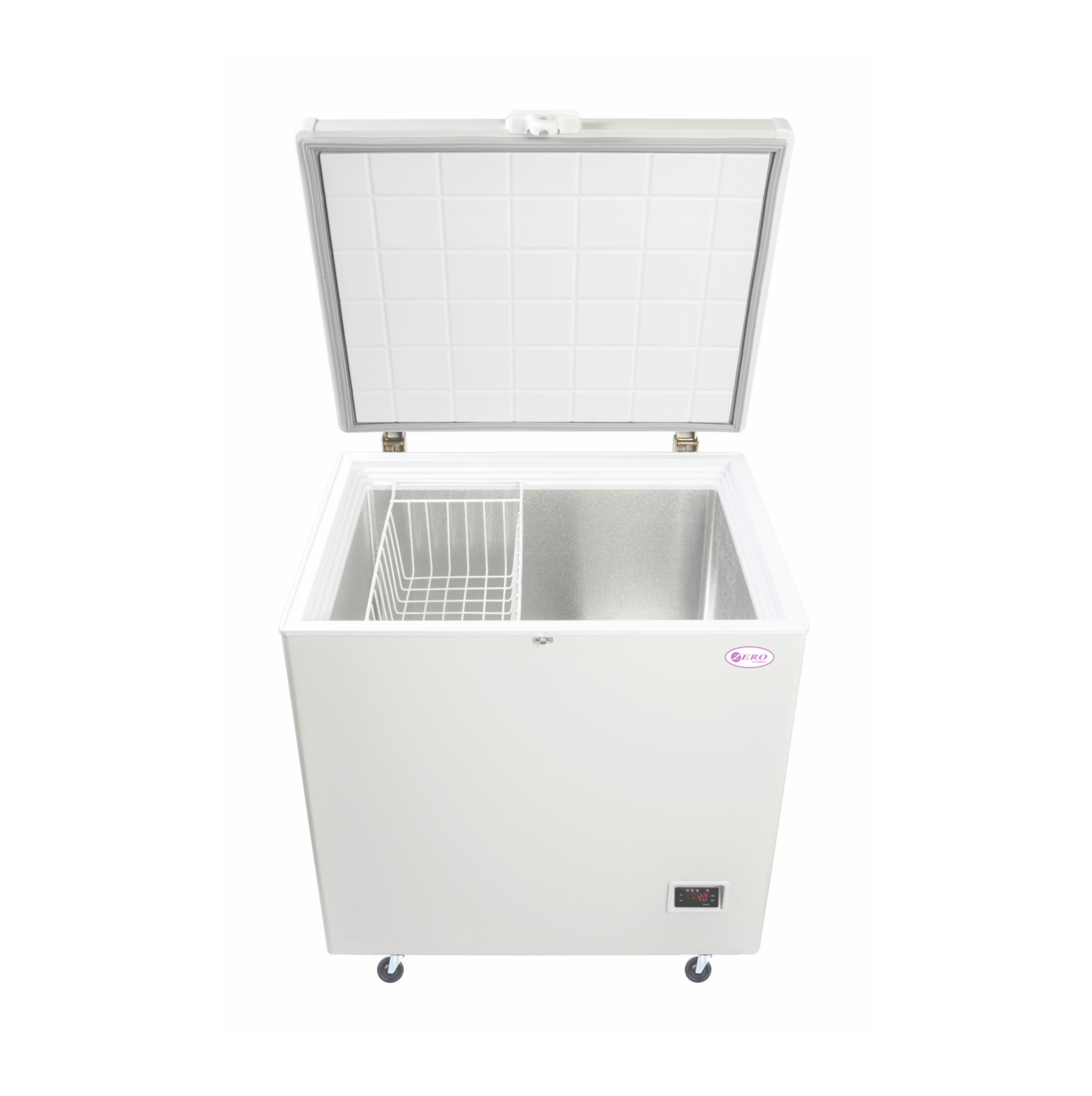

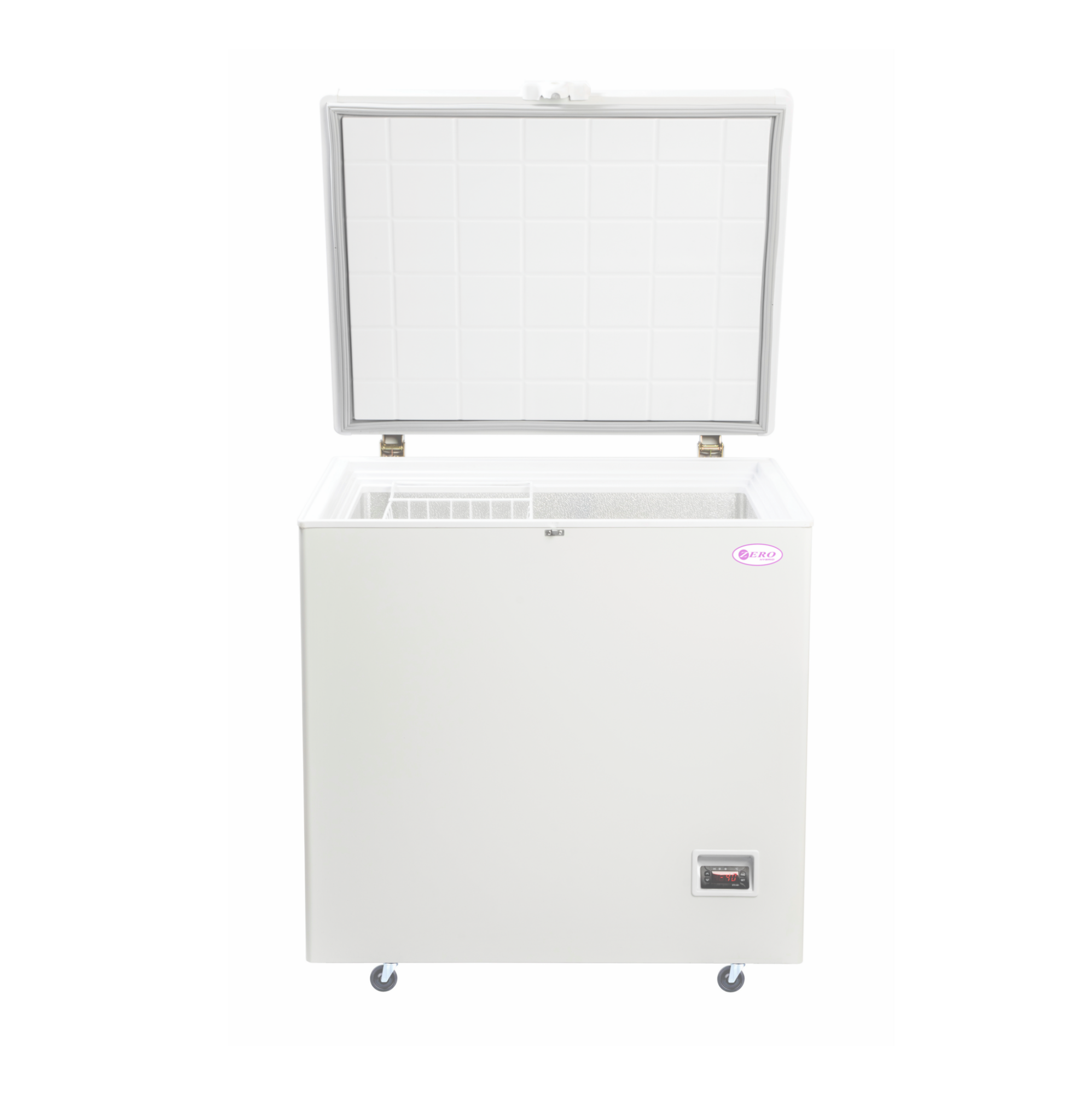

Zero 200L Solar Freezer

Description

Model Reference – ECF 220 DC

Specifications:
Total Capacity – 210L (7.42 CuFt.)

Lids – 1
Baskets Supplied – 1
Thermostat – YES
Climate Class – ST
Temperature Range – -18°C To +7°C
Star Rating (Freezer) – 3

Minimum System Requirements (NOT SUPPLIED)

Panel Output – 250 Watts
Battery Output – 200 Ah/12V (parallel) or 100 Ah/24V (series)
Energy Source
12V Battery Solar – 2 X 12V Batteries in Parallel or
24V Battery Solar – 2 X 12V Batteries in Series

Additional Parts Required To Complete The Installation: (NOT SUPPLIED)

(All parts & required components must be purchased from your local solar supplier or installer)
6mm square cable – Red (this connects from the solar panel to the solar controller and then to the fridge or chest freezer) – standard requirement is approx. 15 meters but you may need more or less

6mm square cable – Black (this connects from the solar panel to the solar controller and then to the fridge or chest freezer) – standard requirement is approx. 15 meters but you may need more or less
10mm panel wire – Red (this connects from the solar controller to the battery system) – standard requirement is approx. 1,5 meters but you may need more or less
6mm panel wire – Black (this connects from the solar controller to the battery system) – standard requirement is approx. 1,5 meters but you may need more or less
6mm earth cable – (length required is dependent upon distance from panel to the ground fixture to earth rod)
Cable protector conduit to protect the cables from external elements
Cable protector glands (2 required if cable protector is opted for)
Adjustable solar panel frame made from Aluminum (if required)

Dimensions
Boxed Dimensions – (H) 905mm x (W)895mm x (D) 755mm
Unboxed Dimensions (mm) – (H) 875mm x (W)845mm x (D) 725mm
Weight (Kg’s) – boxed – 42kg
Weight (Kg’s) – unboxed – 40kg

To Be Installed By A Registered Electrician
Warranty Null And void without Valid COC From Installer
